Elektrohydraulisk 4-søyler: 1526L5

Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

4 post-lifts: 1526L5

1526L5

// 1526L5

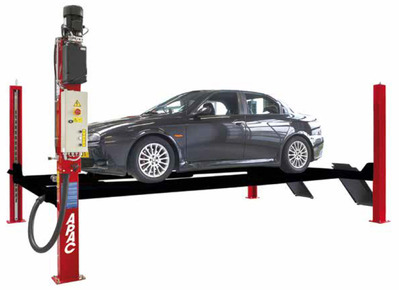

Electro-hydraulic high speed 4 post-lift with narrow platforms for 3D-wheel-alignment:

  • Safety device in case of cable breakage
  • Overload safety valve
  • Descent control valve
  • Pipe burst safety valve
  • 24 V dead man controls
  • Automatic release of safety locking devices
  • Sound dampening of safety locks
  • Manual descent valve
  • Max. lifting height of platforms 1950 mm
  • Function: Electro-hydraulic



Optional:

  • Hydraulic jacking beam (see relevant data sheet)
  • (U2350067) Radius plates
  • Wheel alignement set (rear slip plates + middle alignement covers + front spacers for radius plates)

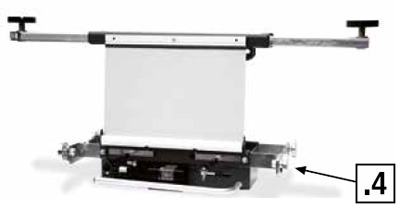

Hydraulic jacking beam (see relevant data sheet) * Optional

// Hydraulic jacking beam (see relevant data sheet) * Optional



Teknisk skisse: 1526L5

1526L5




Tekniske data 1526L5
Kapasitet 5.000 kg
Vekt 980 kg
Lifting/descent 35/35 s
Løftehøgde 1950 mm
Motor 3,0 kW - 3 ph 230
400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.



U2350067 Radius plates * Optional

// U2350067 Radius plates * Optional


Wheel alignement set (U2360767) * Optional

// Wheel alignement set (U2360767) * Optional
