Elektrohydraulisk 4-søyler: 1528C

Utsolgt / ventes inn snart inn igjen
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

4 post-lifts: 1528C

1528C

 // 1528C

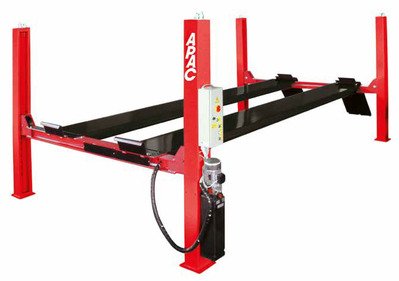

Electro-hydraulic 4 post-lift:

  • Safety device in case of cable breakage
  • Overload safety-valve
  • Descent control valve
  • Safety-valve in case of sudden loss of pressure
  • “Dead man” controls 24V
  • Automatic release of safety locking devices
  • Automatic descent control
  • Soundproof safety devices
  • Buzzer on last portion of descent
  • Function: Electro-hydraulic



OPTIONAL:

  • Hydraulic jacking beam (see relevant data sheet)
  • Single-phase motor
  • Illumination kit
  • Cover for control unit

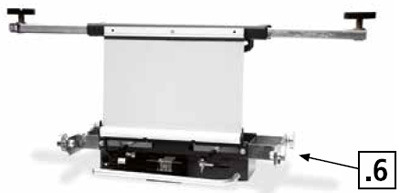

Hydraulic jacking beam (see relevant data sheet) * Optional



 // Hydraulic jacking beam (see relevant data sheet) * Optional




TECHNICAL DRAW: 1528C

1528C



Tekniske data 1528C
Kapasitet 8.000 kg
Vekt 1900 kg
Lifting/descent 55 s
Løftehøgde 2000 mm
Motor 3,0 kW - 3 ph 230
400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.





* Optional

* Optional
