Elektrohydraulisk 4-søyler: 1528

Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

4 post-lifts: 1528

1528

// 1528

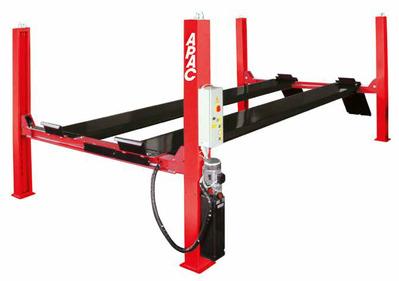

Elektrohydraulisk 4 post lift:

  • Safety device in case of cable breakage
  • Overload safety-valve
  • Descent control valve
  • Pipe burst safety valve
  • 24V, low tension dead man controls
  • Electrical controlled fall safety
  • Automatic release of safety locking devices
  • Automatic descent control
  • Soundproof safety devices
  • Buzzer on last portion of descent
  • Function: Electro-hydraulic



OPTIONAL:

  • Hydraulic jacking beam (see relevant data sheet)
  • Single-phase motor
  • Illumination kit
  • Cover for control unit

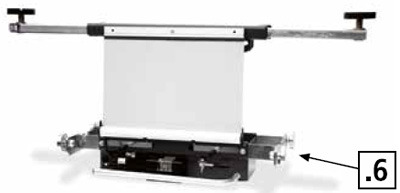

Hydraulic jacking beam (see relevant data sheet) * Optional



// Hydraulic jacking beam (see relevant data sheet) * Optional



TECHNICAL DRAW: 1528

1528

Tekniske data 1528
Kapasitet 6.000 kg
Vekt 1340 kg
Lifting/descent 55 s
Løftehøgde 2000 mm
Motor 3,0 kW - 3 ph 230
400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.



* Optional

* Optional
