Sakseløfter; 1532LP



1532LP - 1532LP35

// 1532LP - 1532LP35

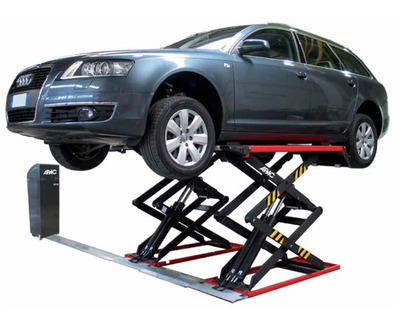

Extra-low-profile hydraulic scissor lift

  • Easy to handle drive-on and drive-off ramps
  • Hydraulic synchronization of platforms
  • Overload safety-valve
  • Safety-valve in case of sudden loss of pressure
  • Automatic lowering control
  • “Dead man” controls 24V
  • Set of 4 rubber pads
  • ‘Buzzer’ on last portion of descent



OPTIONAL

  • Hose extensions 2 m
  • Single phase version
  • Recess frame
  • Kit of embedded run-on and run-off skids
  • Auxiliary ramps for lowered cars
  • Crosspieces for special vehicles



 Surface mounted version as a standard - Minimal height: 98 mm - Easy to drive-over even with low cars

// Surface mounted version as a standard - Minimal height: 98 mm - Easy to drive-over even with low cars


TECHNICAL DRAW: 1532LP - 1532LP35

1532LP - 1532LP35


Tekniske data 1532LP
Operation Elettroidraulico
Kapasitet 3.200 kg
Vekt 730 kg
Lifting/descent 35/40 s
Løftehøgde 1945 mm
Motor 2,2 kW - 230-400 V/50 Hz 3 ph

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.


Double hydraulic system - Double volumetric cylinder under each platform

// Double hydraulic system - Double volumetric cylinder under each platform
