Elektrohydraulsik sakseløfter: 1533 - 1533A - 1533B - 1533C

  • Produktinfo
  • Produktanmeldelser (0)

Sakseløfter: 1533 - 1533A - 1533B - 1533C

1533 - 1533A - 1533B - 1533C

 // 1533 - 1533A - 1533B - 1533C

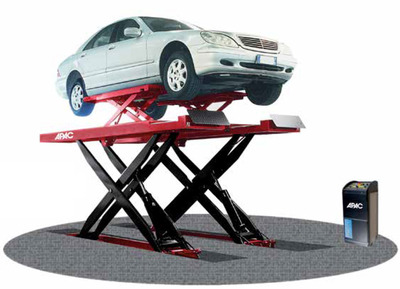

Elektrohydraulisk recessed sakseløfter:

On ‘1533A’ and ‘1533C’ versions: Lifting tabel with 4,0 t capacity

  • Hydraulic synchronization of platforms
  • Automatic leveling of the platform at each descent
  • Overload safety-valve
  • Safety-valve in case of sudden loss of pressure
  • Sliding on pads
  • Manual descent pump in case of power failures
  • “Dead man” controls 24V
  • Auxiliary scissors with double ram (1533A and 1533C)
  • Set of 4 rubber pads (1533A and 1533C)
  • Front recesses and rear slip plates for wheel alignment on models 1533B and 1533C
  • Lateral guides for jacking beams
  • ‘Buzzer’ on last portion of descent
  • Recessed installation as standard

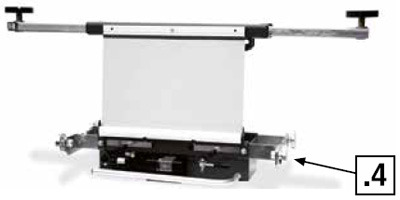

Hydraulic jacking beam on 1533 and 1533B versions (see relevant data sheet) * Optional

// Hydraulic jacking beam on 1533 and 1533B versions (see relevant data sheet) * Optional



Optional:

  • (V1533.6) 4-step play detector
  • (U2350067) Radius plates
  • Drive-on / Drive-off ramps (2)
  • (V1533.1) Hose extensions 2 m
  • Crosspieces for special vehicles (V1530.5)
  • Illumination kit (1533A.7)
  • Set of platforms extensions (600mm)
  • (V1533.8) Galvanized version
  • Hydraulic jacking beam on 1533 and 1533B versions (see relevant data sheet)

// Please ask for detailed drawings to create basement foundations.

(V1533.6) 4-step play detector * Optional

 // (V1533.6) 4-step play detector * Optional



TECHNICAL DRAW: 1533 - 1533A - 1533B - 1533C

1533 - 1533A - 1533B - 1533C



Tekniske data 1533 - 1533A - 1533B - 1533C
Operation Elettroidraulico
Kapasitet 4.500 kg
Vekt 1500 - 2300 kg
Lifting/descent 50 s
Løftehøgde 2140 mm + (565 mm **1533A - 1533C)
Min. height 330 mm * dal pavimento / from floor
Motor 3 kW - 230-400 V/50 Hz 3 ph
Pneumatic feed 6 - 8 bar





(U2350067) Radius plates * Optional



// (U2350067) Radius plates * Optional





The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
