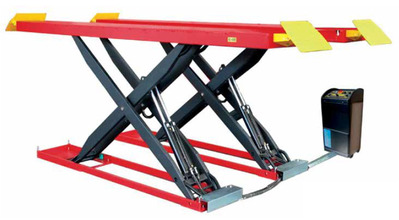

Sakseløfter 1533M

// 1533M
Elektrohydraulisk sakseløfter:
- Hydraulically synchronized platforms
- Overload safety-valve
- Safety-valve in case of sudden loss of pressure
- Hydraulic safety system consists of 2 independently operating hydraulics ystems
- “Dead man” controls 24
- Lateral guides for jacking beams
// Platform QUAD U2360772
Optional:
- Drive-on / Drive-off ramps (2)
- Hose extensions 2 m
- Crosspieces for special vehicles
- Illumination kit
TECHNICAL DRAW: 1533M
Tekniske data |
1533M |
Operation |
Elettroidraulico |
Kapasitet |
4.000 kg |
Vekt |
1600 kg |
Lifting/descent |
50 s |
Løftehøgde |
2180 mm * da pavimento / from floor |
Min. height |
330 mm * da pavimento / from floor |
Motor |
3 kW - 230-400 V/50 Hz 3 ph |
The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
