Sakseløfter: 1533MPG

1533MPG

// 1533MPG

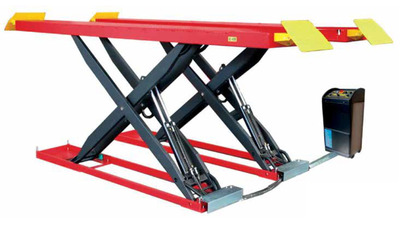

Electrohydraulic scissor car lift:

  • Hydraulically synchronized platforms
  • Overload safety-valve
  • Safety-valve in case of sudden loss of pressure
  • Manual descent pump in case of power failures
  • “Dead man” controls 24
  • 4-step play detector

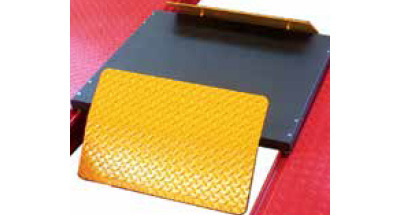

Platform QUAD U2360772

// Platform QUAD U2360772



Optional:

  • Drive-on / Drive-off ramps (2)
  • Hose extensions 2 m
  • Crosspieces for special vehicles
  • Illumination kit



TECHNICAL DRAW: 1533MPG

1533MPG


Tekniske data 1533MPG
Operation Elettroidraulico
Kapasitet 4.000 kg
Vekt 1600 kg
Lifting/descent 50 s
Altezza di sollev. * da pavimento / from floor 2180 mm
Altezza minima * da pavimento / from floor 330 mm
Motor 3 kW - 230-400 V/50 Hz 3 ph
Pneumatic feed 6 - 8 bar

The manufacturing Company reserves the right to make modifications to its machines at any time without.
