Sakseløfter: 1533R - 1533RAT - 1533RLT - 1533RATLT

Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)

Sakseløftere: 1533R - 1533RAT - 1533RLT - 1533RATLT

1533R - 1533RAT - 1533RLT - 1533RATLT

// 1533R - 1533RAT - 1533RLT - 1533RATLT

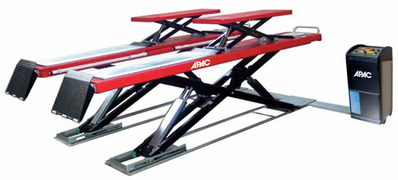

Extra-low-profile hydraulic scissor lift

On ‘LT’ and ‘ATLT’ versions: Lifting tabel with 3,6 t capacity

  • Hydraulic synchronization of platforms
  • Hydraulic overload safety control
  • 4 independent hydraulic safety circuits
  • Mechanical safety ratchet on lifting table
  • Lateral guides for Jacking Beams
  • 24 V, Deadman safety controls
  • Comes with 4 rubber pads (on ‘LT’ and ‘ATLT’ version)
  • ‘Buzzer’ on last portion of descent
  • Drive-on / Drive-off ramps (2)
  • Standard version surface mounted

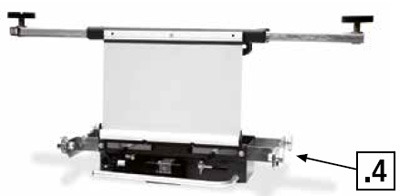

Hydraulic jacking beam on 1533R and 1533RAT versions (see relevant data sheet) * Optional

// Hydraulic jacking beam on 1533R and 1533RAT versions (see relevant data sheet) * Optional



OPTIONAL:

  • Hydraulic jacking beam on 1533R and 1533RAT versions (see relevant data sheet)
  • Hose extensions 2 m
  • Crosspieces for special vehicles
  • Galvanized version
  • (1533A.7) Illumination kit

Double hydraulic system - Double volumetric cylinder under each platform

// Double hydraulic system - Double volumetric cylinder under each platform


TECHNICAL DRAW: 1533R - 1533RAT - 1533RLT - 1533RATLT

1533R - 1533RAT - 1533RLT - 1533RATLT

AT / ATLT Radius plates
// AT / ATLT Radius plates



Tekniske data 1533R - 1533RAT - 1533RLT - 1533RATLT
Operation Elettroidraulico
Kapasitet 3.600 kg
Vekt 1500 - 2100 kg
Lifting/descent 45/50 s
Løftehøgde 1920 mm + (457 mm ** ATLT -LT)
Min. height 120 mm
Motor 3 kW - 230-400 V/50 Hz 3 ph
Pneumatic feed 6 - 8 ba

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.



(1533A.7) Illumination kit * Optional

// (1533A.7) Illumination kit * Optional
