Mobile coloumns: 1489W.04

1488W.04 - 1489W.04 - 1490W.04
// 1488W.04 - 1489W.04 - 1490W.04

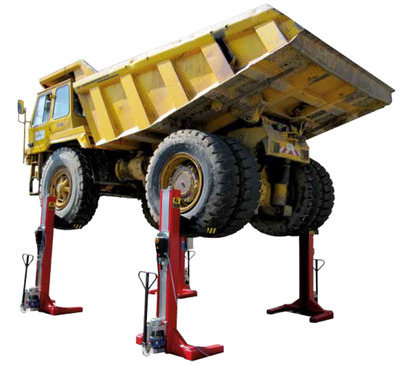

Mobile columns:

  • Electromechanical system with spinale-nut-assy
  • Nylatron bearing nut and steel safety nut
  • PLC-control unit
  • Electronic alignment control
  • Control unit on main post (separate control cabimet on trolley as option)
  • Up-/Down-button on each column
  • Emergency stop on all posts of the kit



Optionals:

  • Electromechanical system with spindle-nut-assy
  • Nylatron bearing nut and steel safety nut
  • PLC-control unit
  • Electronic alignment control
  • Control unit on main post (separate control cabimet on trolley as option)
  • Up-/Down-button on each column
  • Emergency stop on all posts of the kit



TECHNICAL DRAW: 1488W.04 - 1489W.04 - 1490W.04

1488W.04 - 1489W.04 - 1490W.04


Tekniske data 1489W.04
Max. Load Capacity  8,5 t
Stroke  1750 mm
Løftetid  220 s
Dekkdimensjoner  900 - 1200
Installed power  2,2 kW
Electronic sincronisation  X
Safety device under fork obstacle  X
Comandi “uomo presente”  X
End-stroke  X
Connecting column cable lenght  12 m
Manouevre wheel jack  X
Vekt  360 kg

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

Emergency stop on all posts of the kit
