Hydraulisk jacking beam: 1543 - 1543A

1543 - 1543A

// 1543 - 1543A

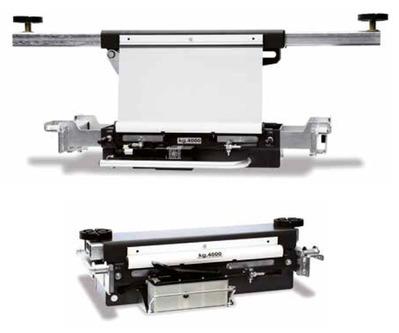

Hydraulic jacking beams

Optionals:

  • Lifting pad extensions:
    - 60 mm V1542.1
    - 100 mm V1542.6


Lifting pad extensions * Optional



// Lifting pad extensions * Optional

TECHNICAL DRAW: Available versions

Available versions


TECHNICAL DRAW: 1543 - 1543A

1543 - 1543A




Technical data 1543 - 1543A
Capacity 4.000 kg
Lifting height 325 mm
Min extension (arms retracted) 935 mm
Estensione max. (bracci aper ti) 1.625 mm
Gauge vedere dettagli schemi
Weight 180 kg

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
